How Does The Animal Feed Mill Equipment For Sale Work?

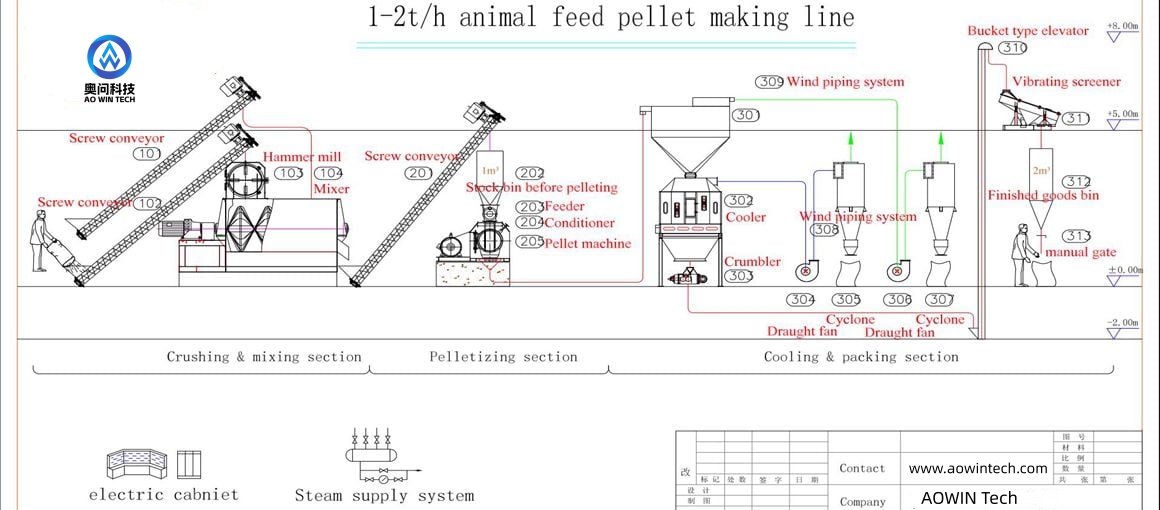

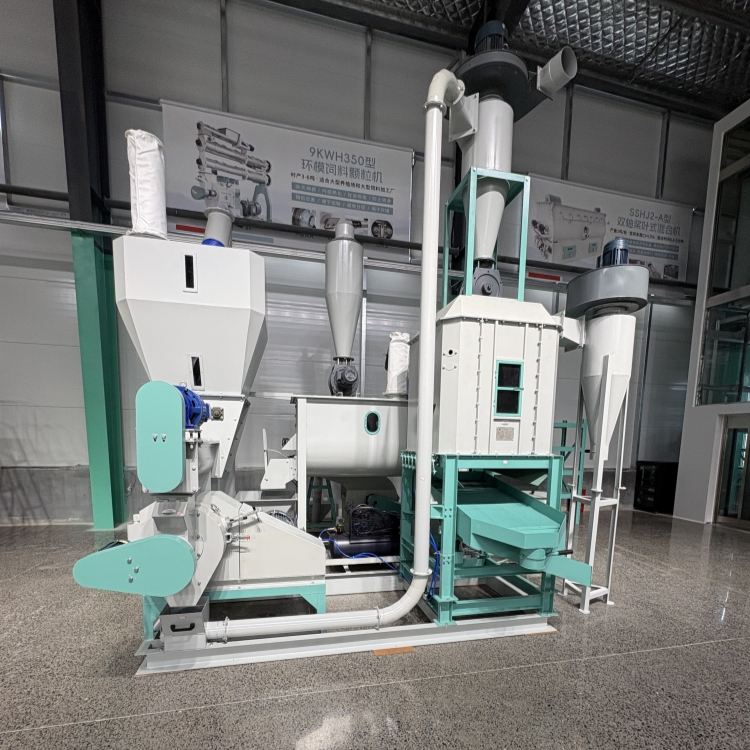

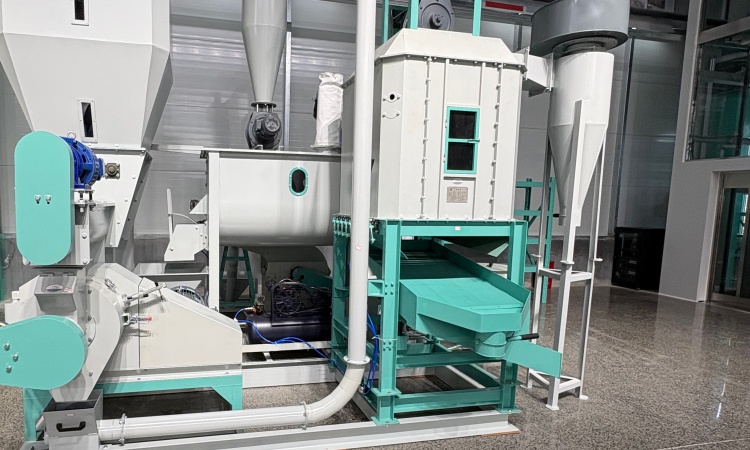

As the above picture shows, the main sections of the animal feed pellet mill equipment for sale are the crushing and mixing section, pelletizing section, and the cooling and packing section. The main equipment of a complete animal feed mill equipment for sale includes feed grinder machine, feed mixer machine, animal feed pellet machine, pellet crumbler, counterflow pellet cooler, screening system, automatic packing machine, conveying equipment, etc.

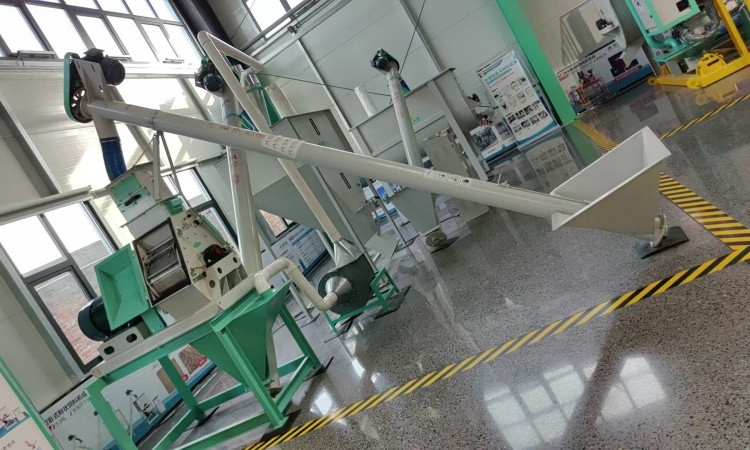

Firstly put the raw materials of a specific proportion into the screw conveyor. Then the raw materials would be crushed into powder by the feed grinder machine. After that, the powder would be completely mixed in the feed mixer machine.

After mixing, the powder is conveyed into the conditioner by the variable frequency feeder. And in the conditioner, the powder is fused with steam. After reaching a certain temperature and moisture, the powder enters the pelletizing chamber. Then the powder is strongly squeezed by the ring die and the pressure roller to form pellets. Under the strong compression of the ring die and the pressure roller, the granules are formed and then cut into the desired length by the cutter.

Then, the conveyor puts the pellets into the cone bucket. The pellets pass through the cone bucket and are discharged into the counterflow pellet cooler. Then the pellets get through the screening system. After sieving, the pellet can be packed.

The Main Equipment Of The 1-2T/H Animal Feed Mill Equipment For Sale

The Features Of Animal Feed Mill Equipment For Sale

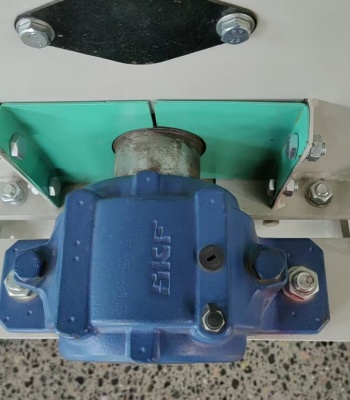

• The bearings of the whole animal feed manufacturing plant are all SKF, which is durable.

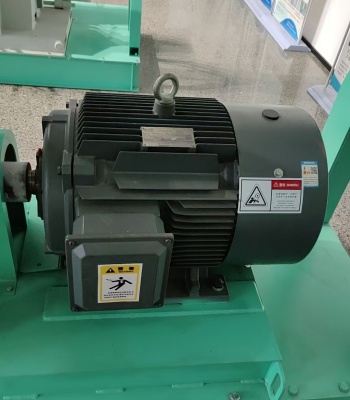

• Equipped with Siemens motor, which reduces energy consumption.
• All parts that have direct contact with the raw materials are made of stainless steel to avoid contamination.

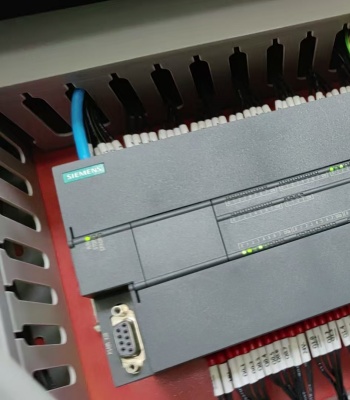

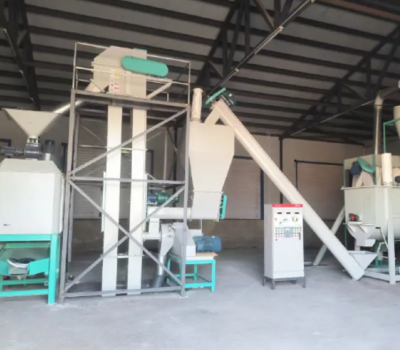

• Equipped with Chint electric control cabinet, which highly improves production efficiency and product quality. The electric control cabinet can see the ammeter of the equipment so that you can see whether the equipment is working at full load or not.
• Equipped with storage systems, such as stock bin before pelleting, cone bucket, and finished goods bin. For example, the stock bin before pelleting is to store the mixed materials, ensuring continuous and stable working between the feed mixer machine and the animal feed pellet machine.
• The animal feed equipment is suitable for all sizes, hardness, lengths, and types of animal feed pellet production.
• AOWIN Machinery can provide you with a 1-100t/h capacity of animal feed mill equipment for sale.

The Working Processing Of The Animal Feed Mill Equipment For Sale

A complete animal feed manufacturing plant includes pre-cleaning system, crushing system, mixing system, pelletizing system, cooling system, screening system, and packing system.

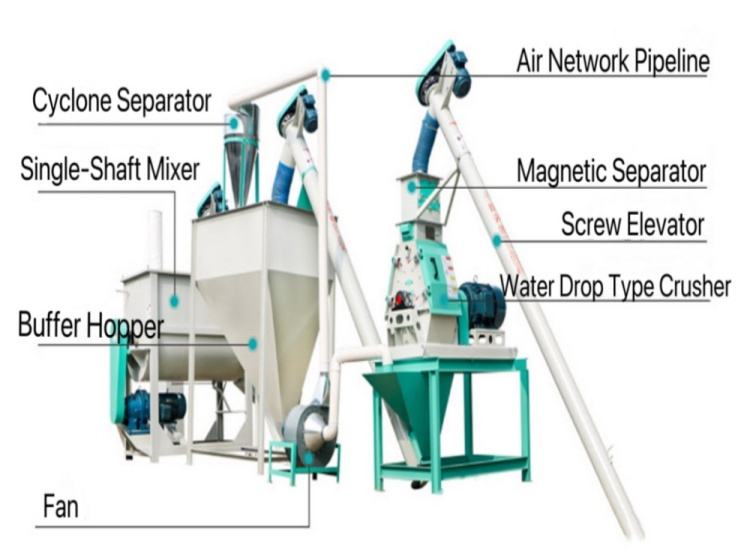

Pre-Cleaning And Crushing System Of The Animal Feed Mill Equipment For Sale

The raw materials can be corn, wheat, maize meal, sorghum, soybean meal, cassava, oat, etc. The first step of a complete cattle feed processing plant is cleaning. The function of cleaning is to remove the impurities of raw material, such as paper, rope, clods, and iron filings, so as to protect the equipment from damage. The equipment usually used in this process are powder sieve, drum-type pre-cleaner, and permanent magnet.

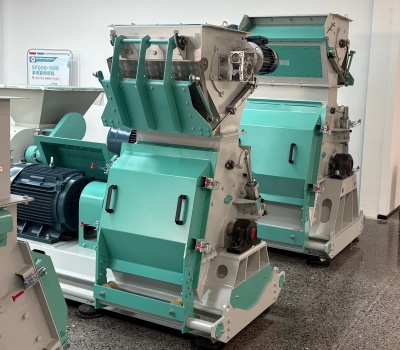

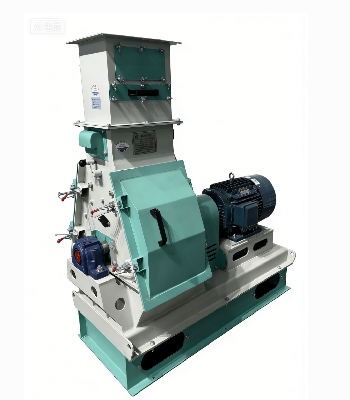

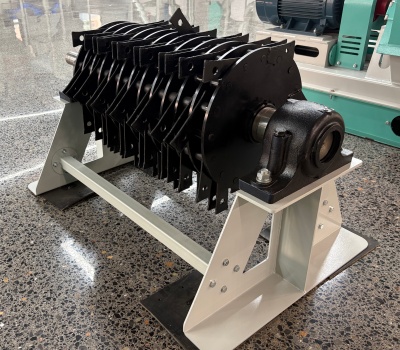

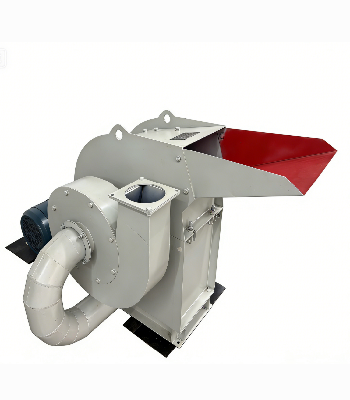

This process is crushing the raw materials into powder for subsequent processing. Through crushing, the pellets can be more easily absorbed by animals. After removing the impurities, the raw material gets into the feed grinder machine to be crushed. The crushed material is transferred by the bucket elevator to the next section. This section’s main machine is the feed grinder machine.

Mixing System Of The Animal Feed Mill Equipment For Sale

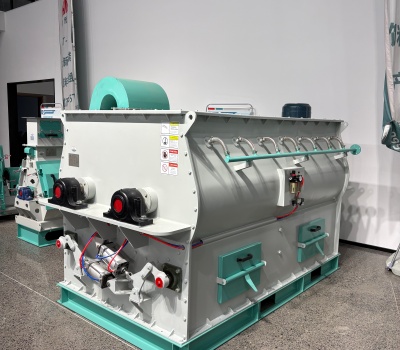

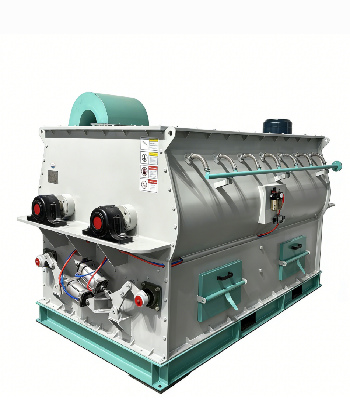

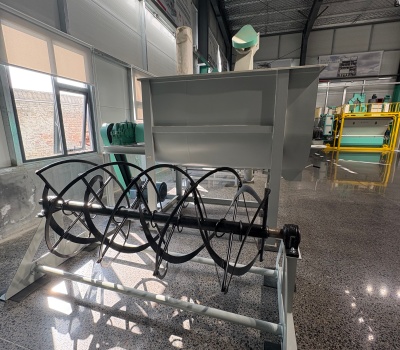

Material batching is designed according to the nutritional needs of different animals, with the accurate weighing of various ingredients. The mixing system is mixing the raw materials with some nutrients that animal needs. The material of a specific proportion gets into the feed mixer machine. They are fully and evenly mixed. Then the finished pellets contain balanced nutrients.

Pelletizing System Of The Animal Feed Manufacturing Plant

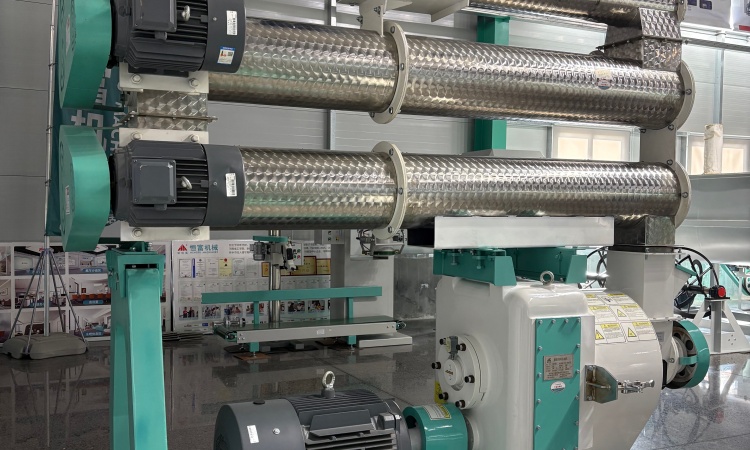

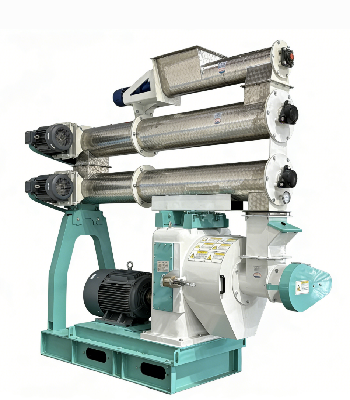

This is the vital section of the whole animal feed mill equipment for sale. The main equipment used in this process is the animal feed pellet machine. After mixing, the powder is conveyed into the conditioner by the variable frequency feeder. And in the conditioner, the powder is fused with steam. After reaching a certain temperature and moisture content, the powder enters the pelletizing chamber. Then the powder is strongly squeezed by the ring die and the pressure roller to form granules and then the pellets are cut into the desired lengths by the cutter.

Cooling And Screening System Of The Animal Feed Mill Equipment For Sale

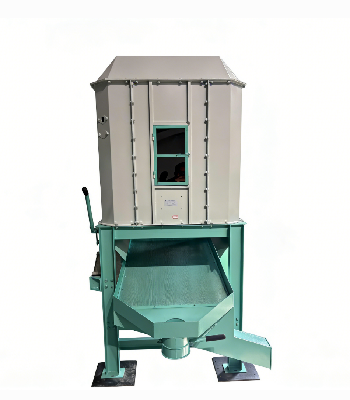

After granulation, the feed pellets get through the cooling and screening system. The main equipment of this section is a counterflow pellet cooler and screening system. After pelletizing, the feed pellets get through the counterflow pellet cooler. The equipment can cool pellets from 80℃ to slightly above room temperature for 3-5℃. Then, one part enters the packing machine, and the other too large or too small is repeatedly crushed or pelletized.

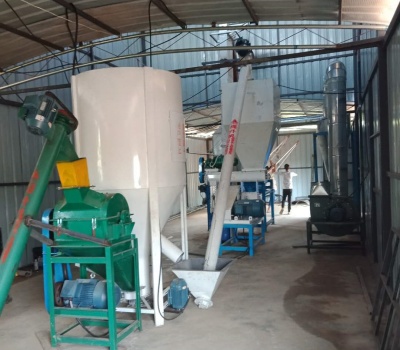

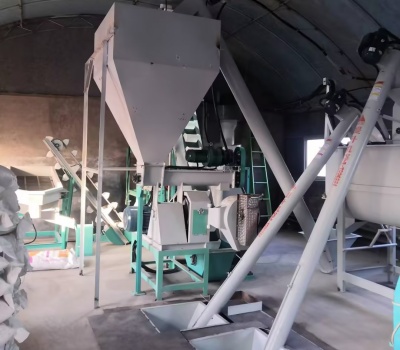

The Cases Of The Animal Feed Mill Equipment For Sale

AOWIN Machinery, as an animal feed equipment manufacturer, can provide you with various designs according to your different needs. With more than 20 years of experience, AOWIN Machinery owns its factory and professional technical team. AOWIN pellet machine has been exported to more than 120 countries and regions all over the world. The animal feed mill equipment for sale can produce 2-12mm feed pellets from corn, grass, wheat bran, rice bran, maize meal, soybean meal, sorghum, barley, cassava meal, oat, etc.

How To Choose Appropriate Animal Feed Mill Equipment For Sale?

When building an animal feed manufacturing plant, the most important is to choose suitable animal feed mill equipment. You can select the equipment according to the following aspects.

The Kind Of Animals

Animal feed mill equipment for sale is specializing in the production of feed. It can produce different feed pellets, such as chicken feed pellets, cattle feed pellets, pig feed pellets, rabbit feed pellets, sheep feed pellets, horse feed pellets, fish feed pellets, etc. You can according to your animal kind select the appropriate equipment. For example, if you want to produce shrimp feed pellets, you should build an animal feed manufacturing plant equipped with a three-layer conditioner.

The Size Of The Pellets

AOWIN animal feed mill equipment for sale can produce feed pellets of different sizes, such as 1.5mm baby chicken feed pellets, 3-4mm broiler and laying hens feed pellets, 6-7mm breeding cattle feed pellets, 5-6mm young cows feed pellets, and other sizes you need. It can be customized according to your detailed requirements. The various sizes of feed pellets can be obtained by changing the ring die of the animal feed pellet machine.

What’s more, if you want to produce 1.5mm baby chicken feed pellets, you should build an animal feed manufacturing plant equipped with a pellet crumbler. The pellet crumbler can be used for crushing feed pellets into 0.8-2mm pellets to suit the needs of baby chickens.

The Raw Materials

The raw materials can be corn, grass, wheat bran, rice bran, maize meal, soybean meal, sorghum, barley, cassava meal, oat, etc. You can choose the equipment suitable for your raw material. If the raw material contains grass, the animal feed pellet machine should be equipped with a forced feeder.

What The Pellets Used For

If the feed pellets you produce are only for your own farm or animals, you do not need a packing machine. If you produce feed pellets for sale, then there is a need for a packing machine.

The most important thing to choose appropriate animal feed mill equipment for sale is to find a reliable animal feed equipment manufacturer. AOWIN Machinery, with CE/ISO/BV certifications, owns its factory and professional technical team. And we have a professional and highly-skilled after-sales service team and a modern and information-based after-sales management system. From the supply of common accessories, and equipment maintenance to repair, we provide customers with a one-stop service to release them out of trouble.

How Do You Start An Animal Feed Factory?

With the development of the breeding industry, more and more people want to build animal feed factories. So what should you pay attention to when you start the animal feed factory?

The first thing is to determine the raw material. After determining the raw materials, you can choose the factory site that is convenient to acquire these raw materials. Then selecting the animal feed equipment is a top priority for you. When selecting high-quality animal feed equipment, you should pay attention to the following factors.

Firstly, you should pay attention to the raw materials. The equipment should be suitable for the raw materials. Taking an example, if the raw materials are powder, there is no need for a feed grinder machine. Also, if the raw materials contain grass, the animal feed pellet machine should be equipped with a forced feeder.

Secondly, the kind of animals should be considered. Different animals need different animal feed mill equipment of various designs. AOWIN animal feed equipment can produce 1.5mm baby chicken feed pellets, 6-8mm milking cattle feed pellets, 5-6mm young cows feed pellets, and shrimp feed pellets. If you want to produce 1.5mm baby chicken feed pellets, the animal feed pellet production line should be equipped with a pellet crumbler. The pellet crumbler is to crush feed pellets into 0.8-2mm pellets to suit the needs of the baby chicken. In addition, if you want to produce shrimp feed pellets, the animal feed manufacturing plant should contain an animal feed pellet machine equipped with a three-layer conditioner.

     Thirdly, the design of the equipment also depends on the finished pellets. For instance, by adjusting the distance between the ring die and the cutter, feed pellets of different lengths can be acquired.

AOWIN Machinery specializing in the production of animal feed equipment for more than 20 years. We can provide you with different animal feed mill equipment of various designs. If you want to learn more about this, just send an inquiry to us!
