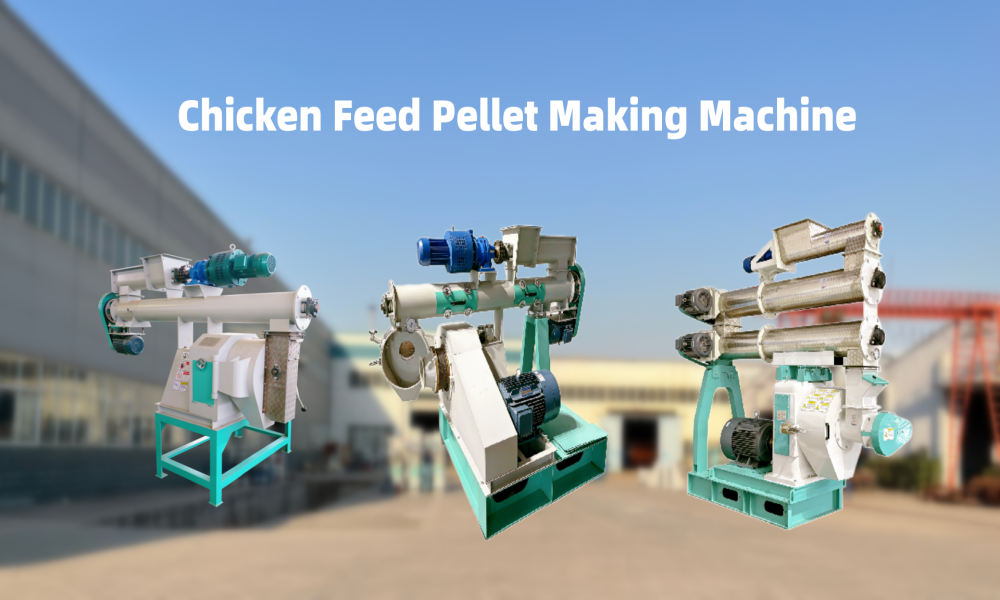

Production Of Chicken Feed Pellet Making Machine
AOWIN Machinery delivers durable and high-performance chicken feed pellet making machines. In addition, we offer tailored feed production solutions based on your raw materials and production needs, making your entire purchase and operation process smooth and hassle-free.

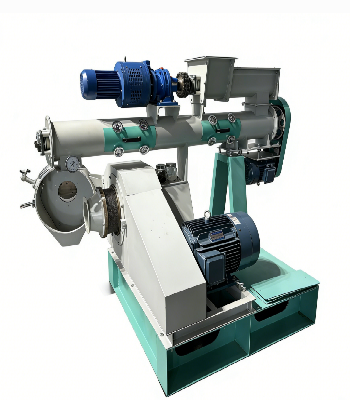

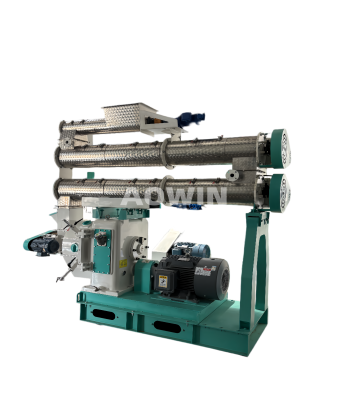

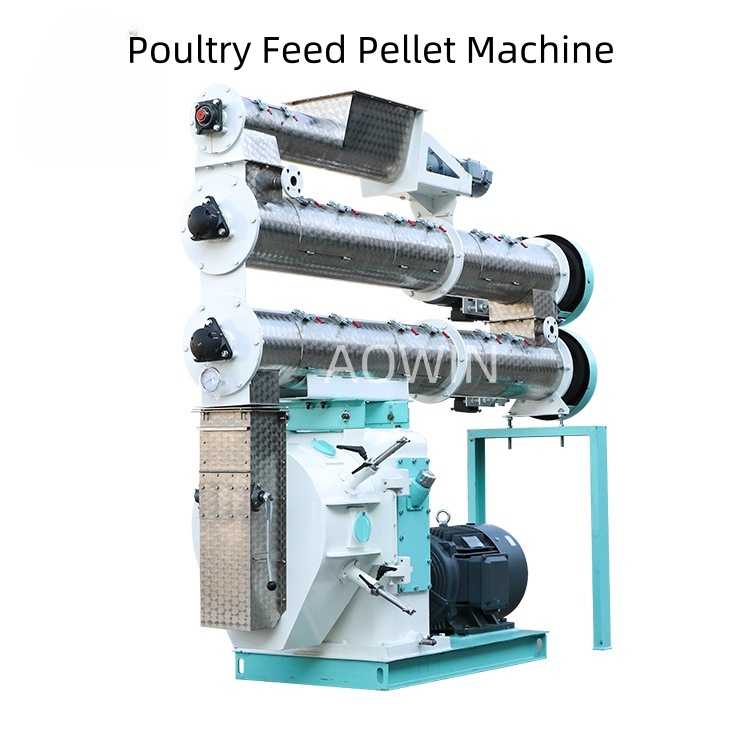

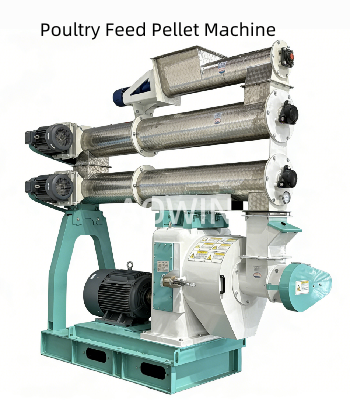

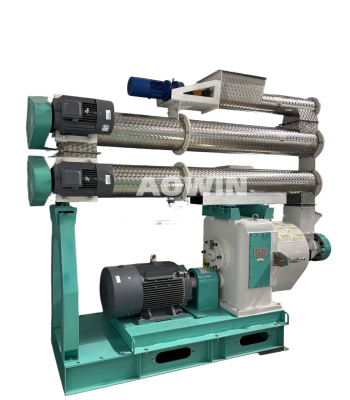

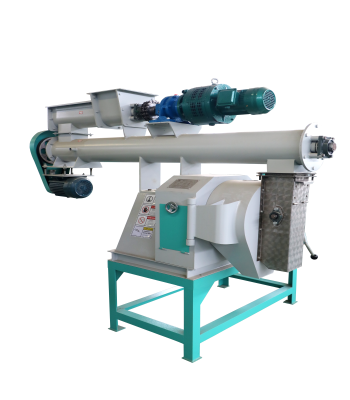

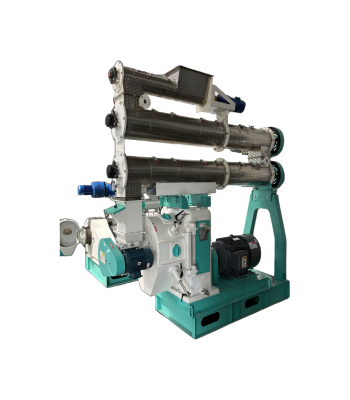

AOWIN Chicken Feed Pellet Making Machine is professional feed processing equipment designed for poultry farming. It processes corn, soybean meal, bran, fish meal, vitamins and minerals into uniform, firm pellets via extrusion and conditioning. High-density pellets resist moisture and mold, extend storage time, lower transportation costs, and improve feed utilization by avoiding selective feeding.
Suitable for small to large-scale chicken farms, AOWIN offers customized models with output from 1 to 45 tons per hour. This machine can also produce feed pellets for ducks, pigs, cattle, sheep and other livestock.

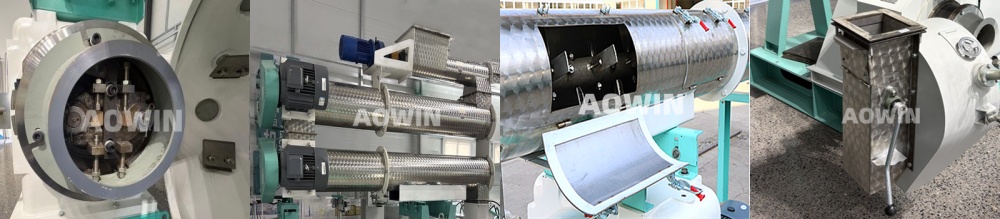

Core Components
The stable performance and high-quality pellet output of AOWIN chicken feed pellet making machines rely on the coordination of its core components. Each part serves an irreplaceable function and is specially designed to meet the precise processing demands of poultry feed production.

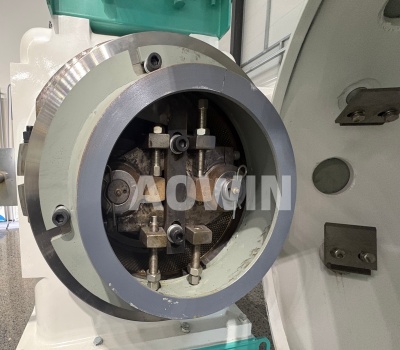

Ring Die And Press Roller
The ring die is a steel mold with 2–5 mm uniform holes, suitable for chicken feeding. The textured press roller compresses feed and extrudes it through the die. Ring die material and precision ensure pellet uniformity, and roller pattern improves pelleting efficiency.
|

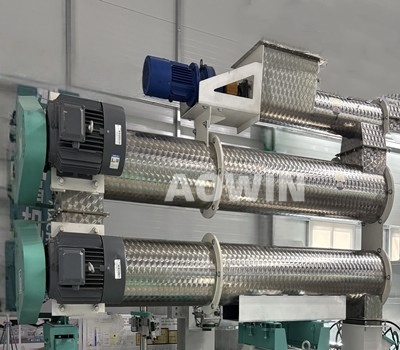

Conditioner
The conditioner adjusts powder moisture to 15%–18% and temperature to 70–80°C with steam or warm water for preliminary gelatinization.
It improves nutrient absorption, protects vitamins, and reduces pellet breakage. |

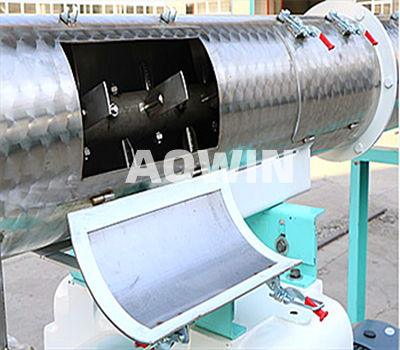

Paddle
Paddles mounted on the conditioner shaft are made of wear-resistant stainless steel for high-temperature and humid environments. They push materials forward and fully mix them with steam, ensuring even heating and humidification. |
Drive System
Comprising a motor, reducer and coupling, the drive system delivers stable power and matching rotational speed. It ensures even pressure on the press rollers and produces consistent, uniform feed pellets. |
Advantages of Chicken Feed Pellets
High-quality pellet feed provides unique and irreplaceable benefits for chickens across all ages and breeds.
Nutritionally Balanced
Unlike single-ingredient mash feed commonly prepared by individual farms, our chicken feed features a scientifically balanced nutritional formula. It effectively avoids nutritional deficiencies caused by selective feeding among poultry, ensuring each chicken obtains adequate protein, vitamins, and minerals for healthy growth.
Precise Feeding
Pelleted feed allows for convenient and accurate dosing, enabling precise control over feed intake for both smallholder farms with manual feeding and large‑scale operations using automated feeding systems.
This effectively avoids feed waste caused by overfeeding and growth restrictions resulting from insufficient intake.
Convenient for Storage
Pellet feed has lower moisture content after processing, which saves storage space and resists moisture absorption.Compared with powdered feed, pellets also reduce dust pollution, creating a cleaner and more hygienic farming environment.
Enhancing Digestibility and Absorption
Under high temperature and pressure, the feed pelleting process effectively kills harmful pathogens such as E. coli and promotes starch gelatinization, making feed nutrients easier for chickens to digest and absorb.
Features of Chicken Feed Pellet Making Machine
We understand that choosing a feed pellet machine is not just about selecting equipment, but finding a reliable long-term partner.
Therefore, we strive for excellence in every detail, demonstrating our profound insight into customer needs and value.
| 1 | Wide Applicability | AOWIN chicken feed pellet machines can produce feed not only for chickens but also for ducks, pigs, cattle, sheep and other livestock and poultry. |
| 2 | Flexible Raw Material Utilization | Traditional ingredients such as corn and soybean meal can be blended with straw powder, insect protein, fermented feed and other special materials for pelleting.This reduces dependence on expensive commercial feed while supporting ecological and organic farming requirements. |
| 3 | Reducing Farming Costs | Uniform pellets effectively prevent selective feeding, cutting feed waste by 15%–20%.High-density pellets also lower losses during storage and transportation, helping farmers reduce long-term feeding costs significantly. |
| 4 | Flexible and Simple Operation | The fully automatic line runs continuously from material processing to final packaging with only 1–2 workers required.This greatly reduces labor costs and improves overall production efficiency. |
Chicken Feed Pellet Making Machine Parameters and Price
AOWIN provides a full range of feed pellet machine models to suit farms of all scales, from small family farms to large-scale commercial breeding bases.
Capacity: 1-2T/H Main motor power: 22kw Conditioner power: 1.5kw Ring die diameter: 250mm Final pellet diameter: 2-12mm |
Capacity: 3-4T/H Main motor power: 37kw Conditioner power: 2.2kw Ring die diameter: 320mm Final pellet diameter: 2-12mm |
Capacity: 5-7T/H Main motor power: 55kw Conditioner power: 3kw Ring die diameter: 350mm Final pellet diameter: 2-12mm |
Capacity: 8-12T/H Main motor power: 110kw Conditioner power: 7.5kw Ring die diameter: 420mm Final pellet diameter: 2-12mm |
Capacity: 10-18T/H Main motor power: 160kw Conditioner power: 11kw Ring die diameter: 508mm Final pellet diameter: 2-12mm |
Capacity: 15-25T/H Main motor power: 180kw /220kw Conditioner power: 11kw Ring die diameter: 558mm Final pellet diameter: 2-12mm |
Chicken Feed Pellet Production Line
AOWIN chicken feed pellet making machines boast a capacity range of 1 ton per hour to 40 tons per hour, suitable for chicken feed pellet production lines with a capacity of 0.7-100 tons per hour. Below is the process flow for a 3-4 tons per hour chicken feed manufacturing plant.
| 1 | | Primary Equipment: Feed Crusher | First, crush the formula-prepared raw materials. This ensures the feed pellet press’s effect and improves the raw materials’ digestibility for animals. |
| 2 | | Primary Equipment: Feed Mixer | After crushing, use a feed mixer to blend the crushed raw materials evenly, ensuring nutritionally balanced feed pellets for animals’ healthy growth. |
| 3 | | Primary Equipment: Animal Feed Mill Equipment | The pelleting machine is the core of the production line, directly determining output and pellet quality. Emphasize equipment selection and standardized operation here. |
| 4 | | Primary Equipment: Counter Flow Cooler | Newly produced pellets have high temperature and humidity and cannot be bagged immediately (to avoid cracking). Cool them to room temperature with a counter flow cooler first. |
| 5 | | Primary Equipment: Powder Cleaning Machine | After cooling, sift the materials to remove lumps, impurities and unqualified pellets, ensuring compound feed quality. |
| 6 | | Primary Equipment: Automatic Packing System | Customers can choose packaging methods as needed; most opt for automatic packing machines for efficiency, consistent weight and lower labor costs. |
Cases For Chicken Feed Pellet Making MachineAOWIN
chicken feed pellet machines have been well recognized by customers across the globe.

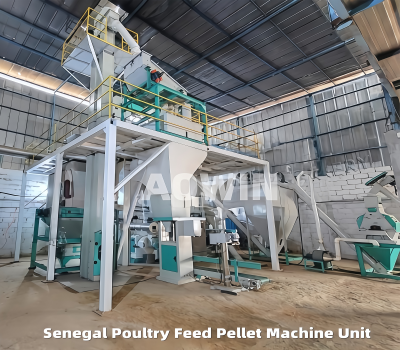

5–6T/HChicken Feed Pellet Making Machine
Country: Senegal
Main Raw Materials: Corn, barley, sorghum, oil, soybean meal.
Pellet Size: 1–12 mm (1.5–4 mm recommended for chicken feed).
Background: There is a gap in local chicken feed production, and there are almost no suppliers providing cost-effective commercial feed pellets for small and medium-sized farmers. The customer has chosen to install production equipment themselves to achieve self-sufficiency.

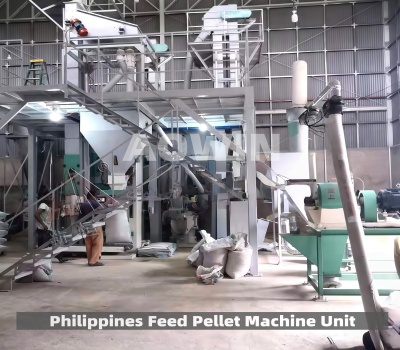

10T/H Chicken Feed Pellet Making Machine
Country: Philippines
Main Raw Materials: Soybeans, corn, wheat and other grains.
Pellet Size: 1–12 mm (1.5–4 mm for chicken feed).
Background: This customer plans to invest in a medium-sized and high-efficiency poultry feed mill to control feed quality, reduce dependence on imported feed, and establish a sustainable supply chain for its rapidly expanding broiler and layer farms.

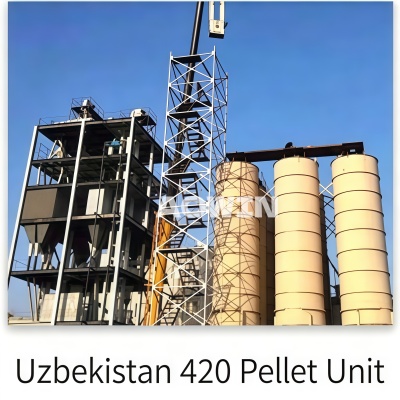

10-15T/H Chicken Feed Pellet Making Machine
Country: Uzbekistan
Main Raw Materials: Corn, wheat, soybean meal, sorghum, cottonseed meal, etc.
Pellet Size: 1–12 mm (1.5–4 mm for chickens).
Background: As the largest local agricultural and animal husbandry enterprise, to improve production efficiency and reduce costs, it has chosen to cooperate with AOWIN after multiple investigations to upgrade production equipment and take the initiative into its own hands.
